步距角精度Step Angle Accuracy

± 5% (full step, no load)

電阻精度Resistance Accuracy

± 10%

電感精度Inductance Accuracy

± 20%

溫升Temperature Rise

80°C Max. (rated current, 2 phase on)

環境溫度Ambient Temperature

- 10°C ~ +50°C

絕緣等級Insulation Class

B

介電強度Dielectric Strength

500 VAC for one minute

V

A

W

mH

Kg-cm

g-cm2

Kg

mm

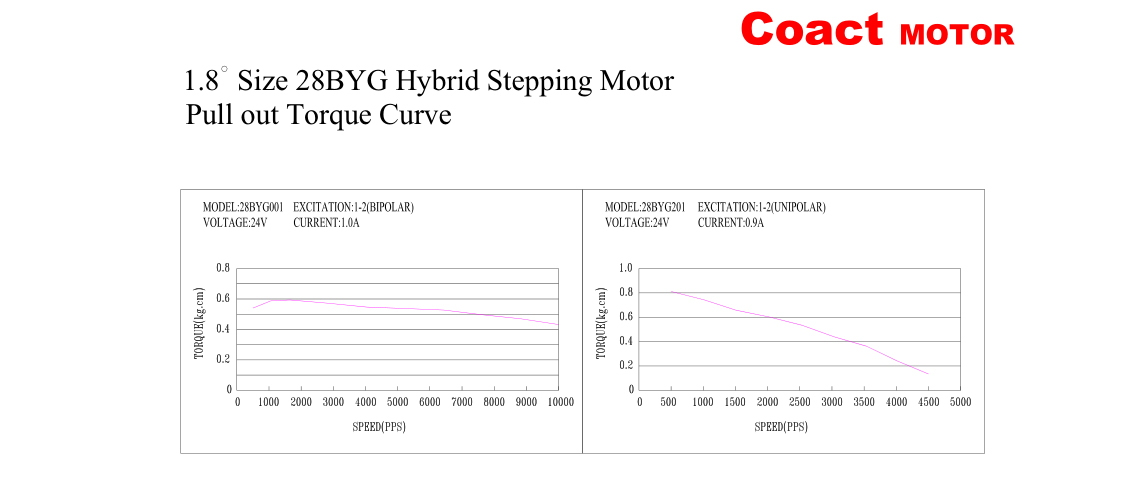

28BYG001

3.0

1.0

3

2.2

0.95

4

11

0.13

40

28BYG201

4.5

0.9

5.0

1.8

0.9

6

18

0.2

51

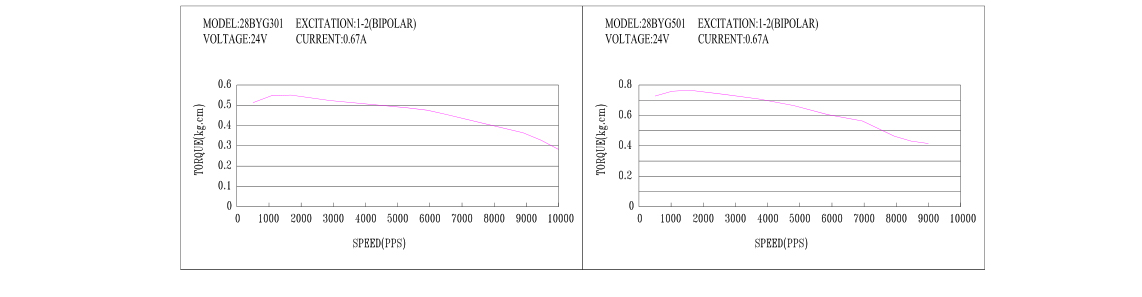

28BYG301

3.75

0.67

5.6

4.0

0.7

4

9

0.11

32

28BYG501

4.56

0.67

6.8

4.8

1.06

4

12

0.15

45
